Product Descriptions

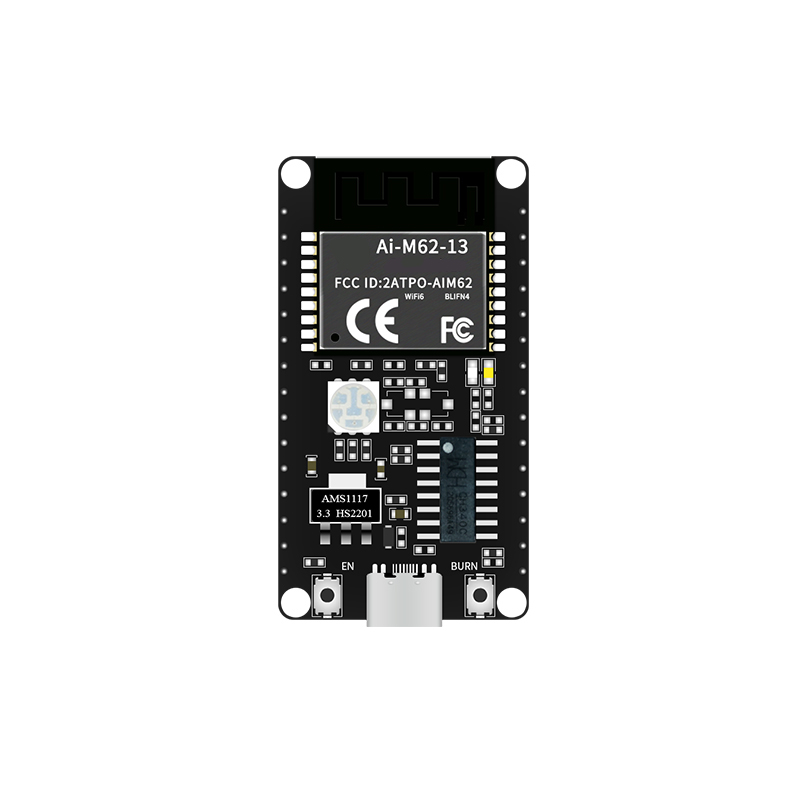

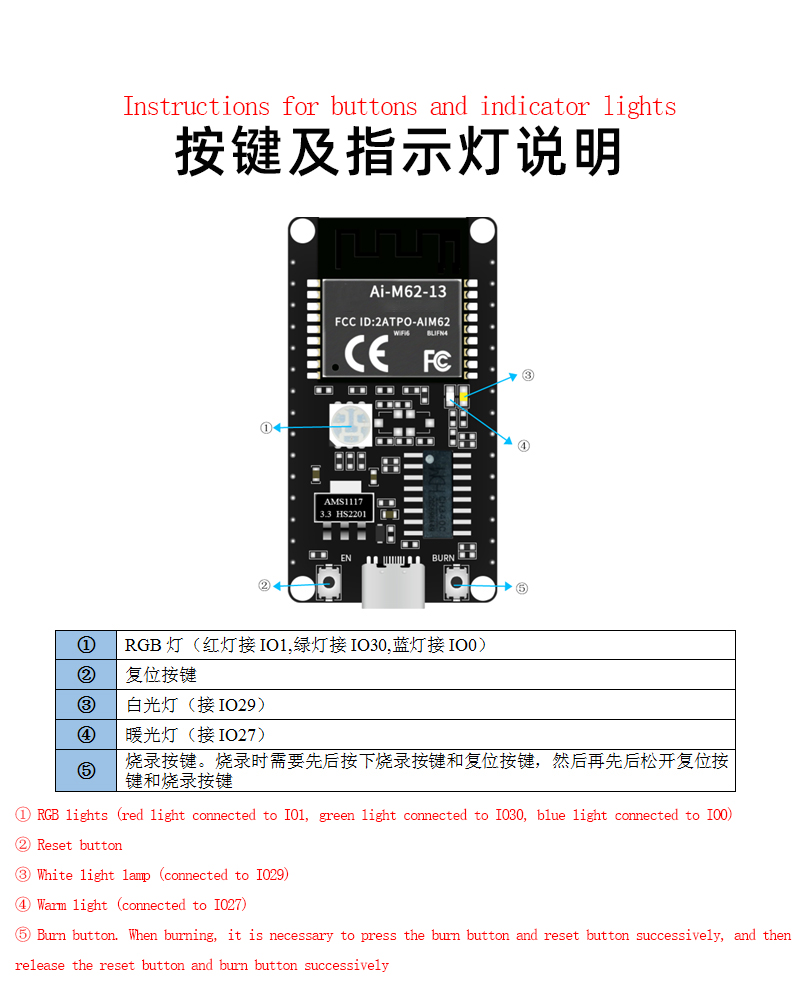

Ai-M62-13 Kit is a development board designed for the Ai-M62-13 module. Ai-M62-13 is a Wi Fi 6+BLE5.3 module, which is equipped with BL616 chip as the core processor, supports Wi Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL616 system includes a low-power 32-bit RISC-VCPU with floating-point unit, DSP unit, cache and memory, with a maximum clock speed of 320M. The Ai-M62-13 module has rich peripheral interfaces, including AudioCodec、USB2.0、SDU、SD/MMC(SDH)、SPI、UART、I2C、I2SPWM、GPDAC、GPADC、ACOMP And GPI0, etc. The Ai-M62-13 module SecEng module supports AES/SHA/PKA/TRNG and other functions, supports image encryption and signature activation, and meets various security application requirements in the Internet of Things field.
Product Specifications

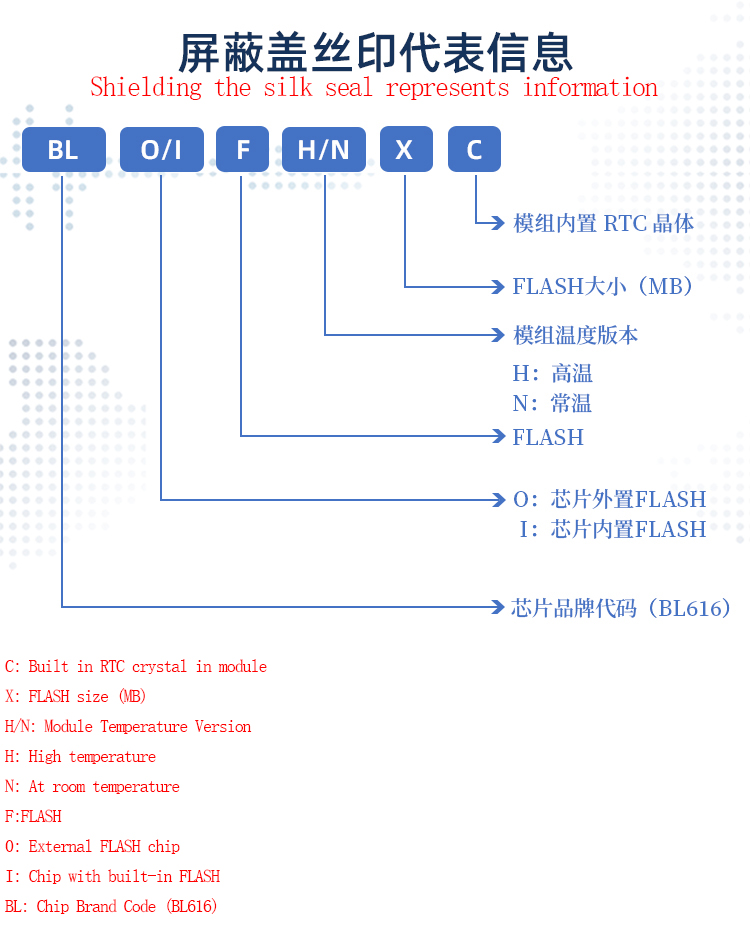

| 模組型號 Module model | Ai-M62-13-Kit |
| 模組封裝 Module packaging | DIP-30 |

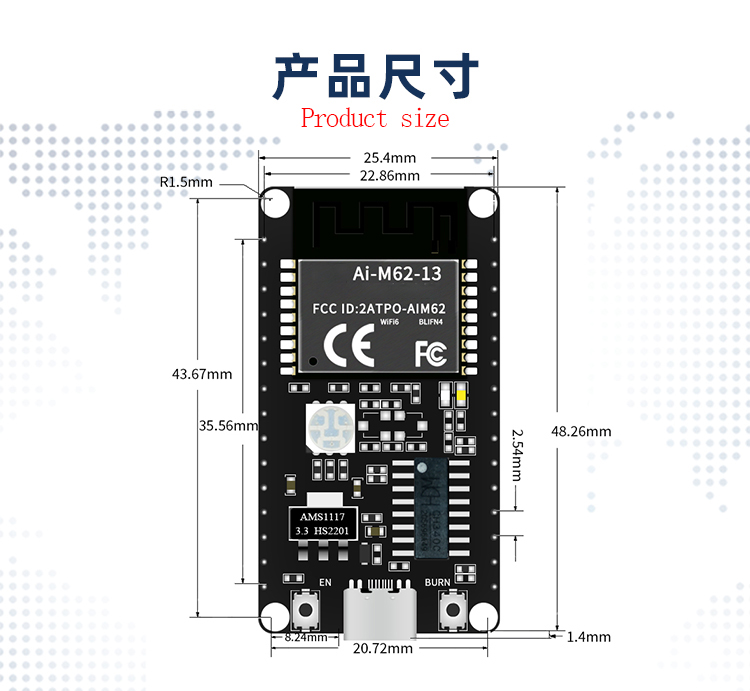

| 尺寸 Size(mm) | 49.66*25.40(±0.2)MM |
| 天線形式 Antenna form | 板載天線 Onboard antenna |
| 頻譜范圍 Spectrum range | 2400-2483.5MHz |
| 工作環境 Work environment | -40℃~85 ℃ |
| 存儲環境 Storage environment | -40℃~125°C,<90%RH |
| 供電范圍 Power supply range | 供電電壓3.3V OR 5V，供電電流≥500mA Supply voltage 3.3V OR 5V,supply current≥500mA |
| 支持接口 Support interfaces | Audio Codec、USB2.0、SDU、SD/MMC(SDH)、SPI、UART、I2C、I2S、PWM、GPDAC、GPADC、ACOMP and GPI0，etc |
| IO口數量 Number of IO ports | 11個 Default 11 |
| 串口速率 Series Rate | 默認115200bps Default 115200bps |
| 安全性 Safety | WPS/WEP/WPA/WPA2/WPA3 |
| Flash | 默認4MByte Default 4MByte |

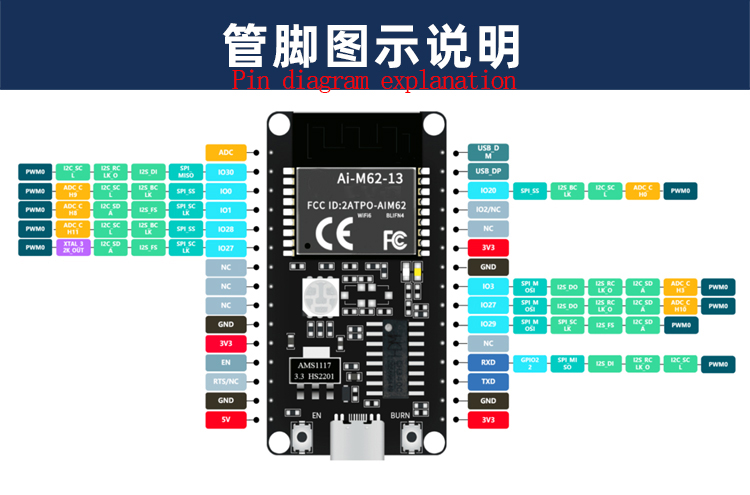

| 腳序 Foot sequence | 名稱 Name | 功能說明 Function Description |
| 1 | ADC | ADC 引腳，與IO3引腳分壓 ADC pin, voltage divider with IO3 pin |
| 2 | IO30 | GPIO30/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWMO |
| 3 | IO0 | GPIO0/SPI_SS/I2S_BCLK/I2C_SCL/ADC_CH9/PWM0 |
| 4 | IO1 | GPIO1/SPI_SCLK/I2S_FS/I2C_SDA/ADC_CH8/PWM0 |
| 5 | IO28 | GPIO28/SPI_SS/I2S_BCLK/I2C_SCL/ADC_CH11/PWMO |
| 6 | IO17 | 默認可用，該 I0 口與模組內部 32.768KHz 晶振輸出 PN 腳共用。如果定制內部貼片 32.768KHz 晶振的模組，該 IO 則為 NC 狀態。 By default available, this I0 port is shared with the 32.768KHz crystal oscillator output PN pin inside the module. If a module with an internal chip 32.768KHz crystal oscillator is customized, the IO will be in NC state. GPIO17/SPI_SCLK/I2S_FS/I2C_SDA/XTAL_32K_OUT/PWM0 |
| 7 | NC | NC |
| 8 | NC | NC |
| 9 | NC | NC |
| 10 | GND | GND |
| 11 | 3V3 | 3.3V 供電 3.3V power supply |
| 12 | EN | 默認作為芯片使能，高電平有效，跟 RST不能同時使用 Default as chip enable, high level effective, cannot be used simultaneously with RST |
| 13 | RTS/NC | 默認懸空，可定制為復位引腳，低電平有效， Default floating, customizable as reset pin, effective at low level, |
| 14 | GND | GND |
| 15 | 5V | 5V 供電 5V power supply |
| 16 | 3V3 | 3.3V 供電 3.3V power supply |
| 17 | GND | GND |
| 18 | TX | TXD/GPIO21/SPI_SCLK/I2S_FS/I2C_SDA/ADC_RCAL_VOUT/PWM0 |
| 19 | RX | RXD/GPIO22/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWM0 |
| 20 | NC | NC |
| 21 | IO29 | GPIO29/SPI_SCLK/I2S_FS/I2C_SDA/PWM0 |
| 22 | IO27 | GPIO27/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/ADC_CH10/PWM0 |
| 23 | IO3 | GPIO3/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/ADC_CH3/PWM0 |
| 24 | GND | GND |
| 25 | 3V3 | 3.3V 供電 3.3V power supply |
| 26 | NC | NC |
| 27 | IO2/NC | 默認 NC，不可使用，如果引出，支持 Bootstrap/GPIO2/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/ADC_CH2/PWM0 |
| 28 | IO20 | GPIO20/SPI_SS/I2S_BCLK/I2C_SCL/ADC_CH0/PWM0 |
| 29 | USB_DP | USB_DP |
| 30 | USB_DM | USB_DM |
WiFi RF Performance Table
| 描述 Describe | 典型值 Typical values | 單位 Unit | ||
| 頻譜范圍 Spectrum range | 2400~2483.5 | MHz | ||
| 輸出功率 Output power | ||||
| 模式 Mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 單位 Unit |
| 11ax 模式下HE40，PA輸出功率為 | - | 16 | - | dBm |
| 11ax 模式下HE20，PA輸出功率為 | - | 17 | - | dBm |
| 11n 模式下HT40，PA輸出功率為 | - | 19 | - | dBm |
| 11n 模式下HT20，PA輸出功率為 | - | 19 | - | dBm |
| 11g 模式下，PA輸出功率為 | - | 19 | - | dBm |
| 11b 模式下，PA輸出功率為 | - | 22 | - | dBm |
| 接收靈敏度 Receiver sensitivity | ||||
| 模式 Mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 單位 Unit |
| 11b,1 Mbps | - | -98 | - | dBm |
| 11b, 11 Mbps | - | -90 | - | dBm |
| 11g, 6 Mbps | - | -93 | - | dBm |
| 1lg,54 Mbps | - | -76 | - | dBm |
| 11n,HT20(MCS7) | - | -73 | - | dBm |
| 11ax,HE20(MCS9) | - | -70 | - | dBm |
| 11ax,HE40(MCS9) | - | -67 | - | dBm |
BLE RF Performance Table
| 描述 Describe | 典型值 Typical values | 單位 Unit | ||
| 頻譜范圍 Spectrum range | 2400~2483.5MHz | MHz | ||
| 輸出功率 Output power | ||||
| 速率模式 Rate mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 單位 Unit |
| 1Mbps | - | 10 | 15 | dBm |
| 2Mbps | - | 10 | 15 | dBm |
| 接收靈敏度 Receiver sensitivity | ||||
| 速率模式 Rate mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 單位 Unit |
| 1Mbps sensitivity @ 30.8% PER | - | -99 | - | dBm |
| 2Mbps sensitivity @ 30.8% PER | - | -97 | - | dBm |
Power consumption meter
·The following power consumption data is based on a 3.3V power supply, an ambient temperature of 25 ° C, and measured using an internal voltage regulator.
·All measurements were completed at the antenna interface with a filter in place.
·All emission data is measured based on a 100 percent duty cycle in continuous emission mode.
| 模式 Mode | 最小值 Minimum value | 平均值 Average value | 最大值 Maximum value | 單位 Unit |
| 發射(Transmit)802.1lb，11Mbps，POUT=+22dBm | - | 442 | - | mA |
| 發射(Transmit)802.11g，54Mbps，POUT=+19dBm | - | 296 | - | mA |
| 發射(Transmit)802.11n，MCS7，POUT=+19dBm | - | 301 | - | mA |
| 發射(Transmit)802.11ax，MCS7，POUT=+17dBm | - | 269 | - | mA |
| 接收(Receive)802.11b | - | 59 | - | mA |
| 接收(Receive)802.11g | - | 59 | - | mA |
| 接收(Receive)802.11n | - | 59 | - | mA |
| 接收(Receive)802.11ax | - | 59 | - | mA |
