Product Descriptions

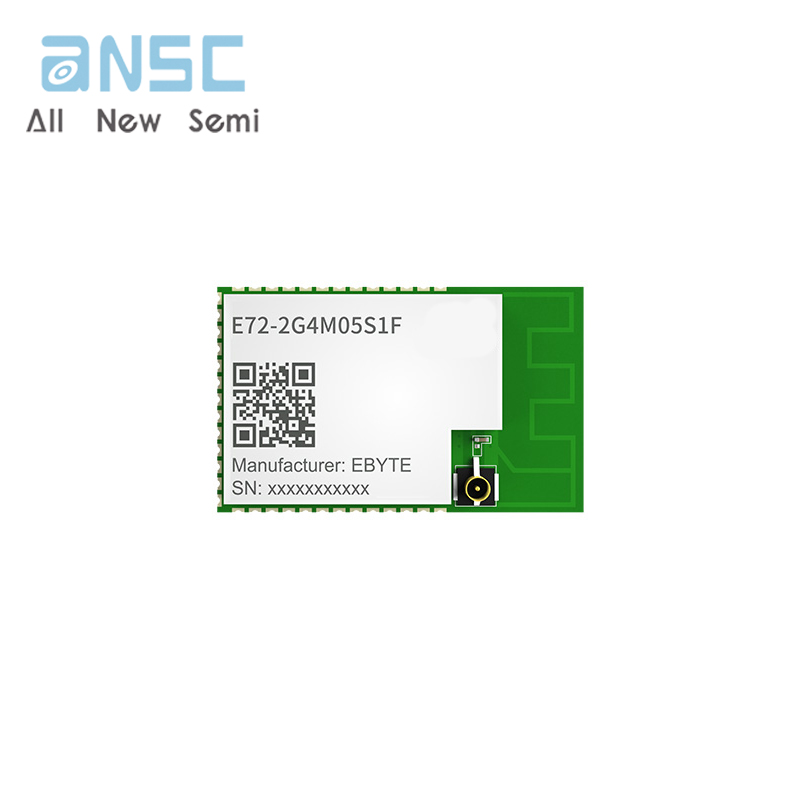

E72-2G4M05S1F is a self-developed, multi-protocol, 2.4G, SMD, wireless SoC module based on CC2652RB from TI. The transmit power is 5dBm. Built-in ARM microcontroller and high-performance wireless transceiver. With an integrated BAW (Bulk Acoustic Wave) resonator to generate a radio frequency carrier, so no external 48MHz crystal is required.

The module leads out all IO ports of the MCU. Comes with a powerful 48 MHz Arm ? Cortex ? -M4F processor, an internal integrated power amplifier, powerful peripherals and up to 26 GPIOs, enabling multi-directional development.CC2652RB has the potential tobecome the best choice of wireless microcontroller for smart home, IoT transformation, and industrial automationinthefuture.

Since this module is a SoC module, it needs to be programmed by user before it can be used.

Product Features

? Powerful 48 MHz Arm ? Cortex ? -M4F processor processor;

? Rich resources, 352KB FLASH, 80KB RAM;

? 1.8-3.8V power supply, over 3.3 V can guarantee the best performance;

? Transmit power 5dBm;

? Under ideal conditions, the communication distance can reach 350m with the external antenna;

? Module contains an external 32.768K low speed crystal oscillator;

? Industrial grade standard design, support -40 ~ 85 °C for working over a long time;

? 2 Pin cJTAG and JTAG debugging;

? Support OTA;

? Wireless protocol: Thread, Zigbee ? , Bluetooth ? 5 Low Energy;

? Receiving sensitivity: –100 dBm for 802.15.4 (2.4 GHz), -102 dBm for Bluetooth 5 Low Energy Coded;

Product Applications

? Building automation solutions

-Building Security System - Motion Detector, electronic intelligent door lock, door and windowsensor，Garagedoor system, gateway

-HVAC - Thermostat, wireless, sensor, HVAC system controller, gateway

-Fire safety system - smoke and temperature detectors, FACP

-Video surveillance - IP webcam

-Elevators and escalators - Elevator mains，Elevator and escalator control panel;

? Grid infrastructure

-Smart meter - Water meter, gas meter, electricity meter and heat cost allocator

Grid communication - Wireless communication, remote sensor applications

? Industrial transport - Asset tracking

? Plant automation and control

? Medical

? Electronic Point of Sale (EPOS) - Electronic shelves

? Label (ESL)

Specifications
