Product Descriptions

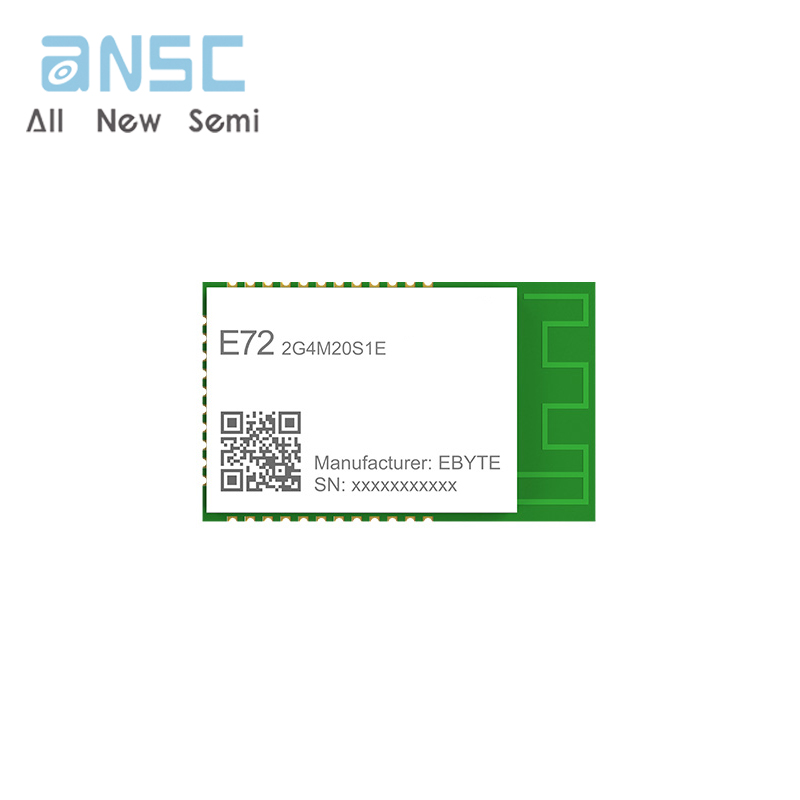

E72-2G4M20S1E is a multi-protocol 2.4GHz SMD wireless system-on-chip module independently developed by TI based on CC2652P produced by TI. The transmit power is 20dBm. It integrates an ARM microcontroller and high-performance wireless transceiver. It uses industrial-grade 48MHz high-precision low-temperature. Floating crystal oscillator.

The module leads all the IO ports of the single-chip microcomputer. The chip comes with a powerful 48 MHz Arm ? Cortex ? -M4F processor, an internal integrated power amplifier, powerful peripherals and up to 26 GPIOs, which can be developed in multiple directions. CC2652P is a wireless microcontroller with great potential to become the future smart furniture, Internet of Thingstransformation, and industrial automation.。

Because this module is a pure hardware SoC module, users need to program it before use.

Product Features

? Built-in high-performance low-power Arm ? Cortex ? -M4F processor, clock speed up to 48MHz;

? Rich resources,352KB FLASH，80KB RAM;

? Support 1.9 ~ 3.8V power supply, power supply greater than 3.3V can ensure the best performance;

? Transmitting power 20dBm;

? Under ideal conditions, the communication distance can reach 700m;

? The module contains 48M high-speed crystal/32.768k low-speed crystal;

? Industry standard design, support long-term use at -40～+85℃;

? 2 pin cJTAG and JTAG debugging

? Support wireless upgrade (OTA)

? Wireless protocol:

Thread, Zigbee ? , Bluetooth ? 5 Low Energy,

IEEE 802.15.4g, IPv6-enabled smart objects

(6LoWPAN), Wi-SUN ? , proprietary systems,

SimpleLink? TI 15.4-Stack (2.4 GHz),

Dynamic Multiprotocol Manager (DMM) driver.

? Receive sensitivity:–100 dBm for 802.15.4 (2.4 GHz),–105 dBm for Bluetooth 125-kbps (LE Coded PHY)

Product Applications

? Building automation

-Building security system-Motion detector, electronic intelligent door lock, door and windowsensor, garagedoor system, gateway

-HVAC-thermostat, wireless environment, sensors, HVAC system controller, gateway

-Fire safety system-Smoke and temperature detector, fire alarm control panel (FACP)

-Video surveillance- IP network camera

-Elevator and escalator-Elevator main, control panel of elevator and escalator;

? Grid infrastructure

-Smart electric meters-Water meters, gas meters, electric meters and heat cost apportioners

-Grid communication-Wireless communication. Remote sensor application

-Other Alternative Energy-Energy Collection

? Industrial Transportation-Asset Tracking

? Factory automation and control

? Medicine

? Electronic Point of Sale (EPOS)-Electronic Shelf

? Label (ESL)

Specifications
