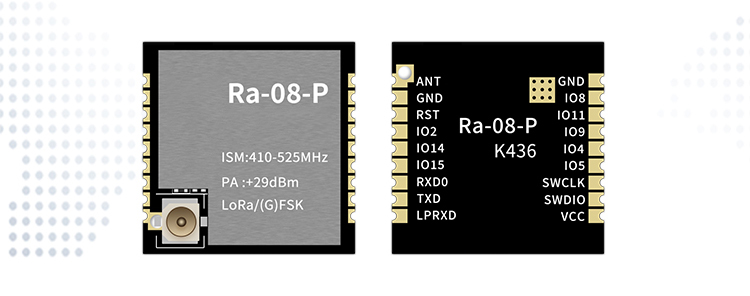

Product Descriptions
Ra-08-P is a high-power LoRa module used for ultra long distance spread spectrum communication. The ASR6601 chip is a universal LPWAN wireless communication SoC that integrates an RF transceiver, modem, and a 32-bit RISCUMC. This MCU uses an ARM core and can operate at a frequency of up to 48MHz. The Ra-08-P module supports LoRa modulation and traditional (G) FSK modulation for LPWAN use cases; The transmitter also supports BPSK modulation and (G) MSK modulation, while the receiver supports (G) MSK modulation. On the basis of this technology, the module is equipped with a power amplifier (PA) and a low noise amplifier (LNA), with high sensitivity exceeding -137dBm, transmission power of+29dBm, long transmission distance, and high reliability. Meanwhile, compared to traditional modulation techniques, LoRaTM modulation technology also has significant advantages in anti blocking and selection, solving the problem that traditional design schemes cannot simultaneously consider distance, anti-interference, and power consumption.
The Ra-08-P module provides ultra long range and ultra-low power communication for LPWAN applications, which can be widely used in scenarios such as smart meters, supply chain and logistics, home building automation, security systems, remote irrigation systems, etc.
Product Specifications
| 模組型號 Module model | Ra-08-P |
| 模組封裝 Module packaging | SMD-18 |

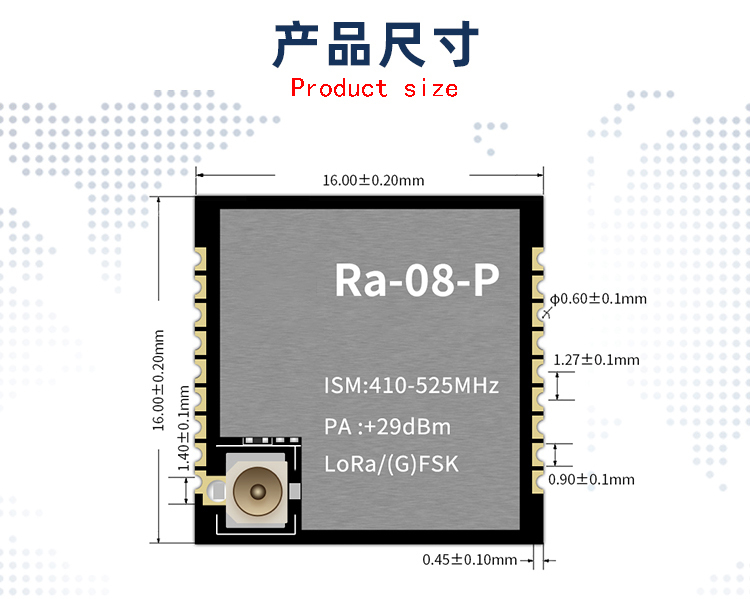

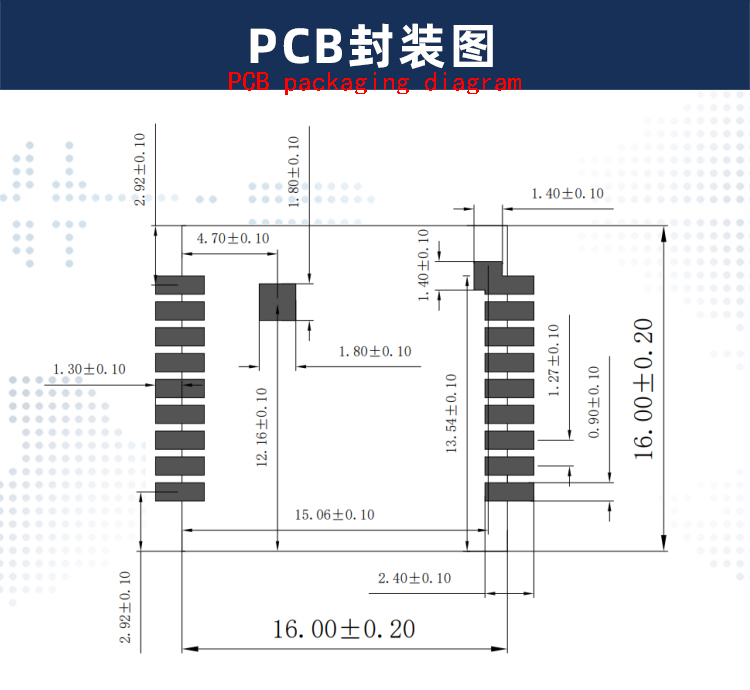

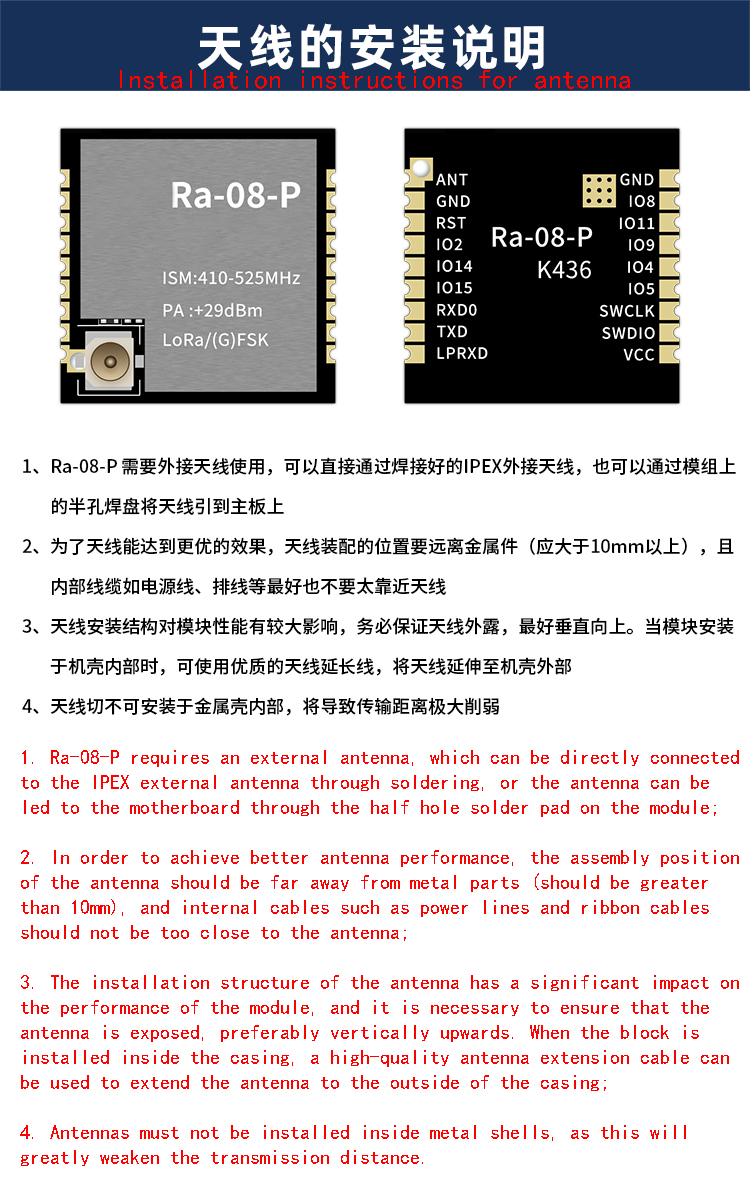

| 尺寸(mm) Size(mm) | 16.0*16.0*3.2(±0.2)MM |
| 天線形式 Antenna form | 兼容半孔焊盤/通孔焊盤/IPEX 座子 Compatible with half hole solder pads/through-hole solder pads/IPEX sockets |
| 頻譜范圍 Spectrum range | 410~525MHz |
| 工作環(huán)境 Work environment | -40℃~85 ℃ |
| 存儲環(huán)境 Storage environment | -40℃~125°C,<90%RH |
| 供電范圍 Power supply range | 供電電壓2.8V~3.6V，供電電流＞500mA Supply voltage 2.8V~3.6V,supply current＞500mA |
| 支持接口 Support interfaces | UART/GPIO/ADC/PWM/I2C/I2S/SPI/DAC |
| IO口數量 Number of IO ports | IO2,IO4,IO5,IO8,IO9,IO11,IO14,IO15 |
| 串口速率 Series Rate | 支持 110~4608000 bps，默認115200bps Supports 110~4608000 bps, default 115200bps |
| 晶振頻率 Crystal frequency | 32MHz |
| 傳輸協(xié)議 Transport Protocol | LORaWAN,LinkWAN |
| Flash | 128KB |
Module power consumption
| 參數 Parameter | 名稱 Name | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 單位 Unit | 備注 Notes | |
| 工作溫度 Operation temperature | TOPR | -40 | 25 | 85 | ℃ | ||
| 供電電壓 Supply Voltage | VDD | 2.8 | 3.3 | 3.6 | V | ≥3.3V 可保證輸出功率 ≥ 3.3V ensures output power | |
| 功耗 Power consumption | 睡眠模式 Sleep mode | 功耗1 Power consumption 1 | - | 17 | - | μA | Deep Sleep |
| 功耗2 Power consumption 2 | - | 7 | - | mA | STANDBY Mode | ||
| 滿載模式 Full load mode （TX:29dBM） | - | 700 | - | mA | DC-DC mode | ||
| 接收模式 Receiving mode （RX:SF7） | - | 16 | - | mA | DC-DC mode | ||

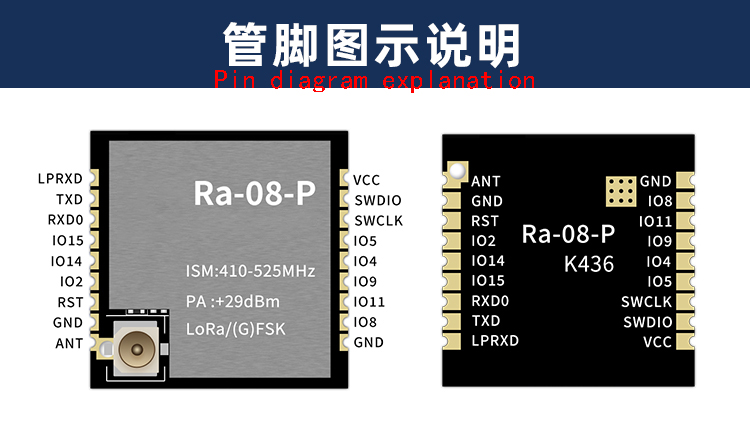

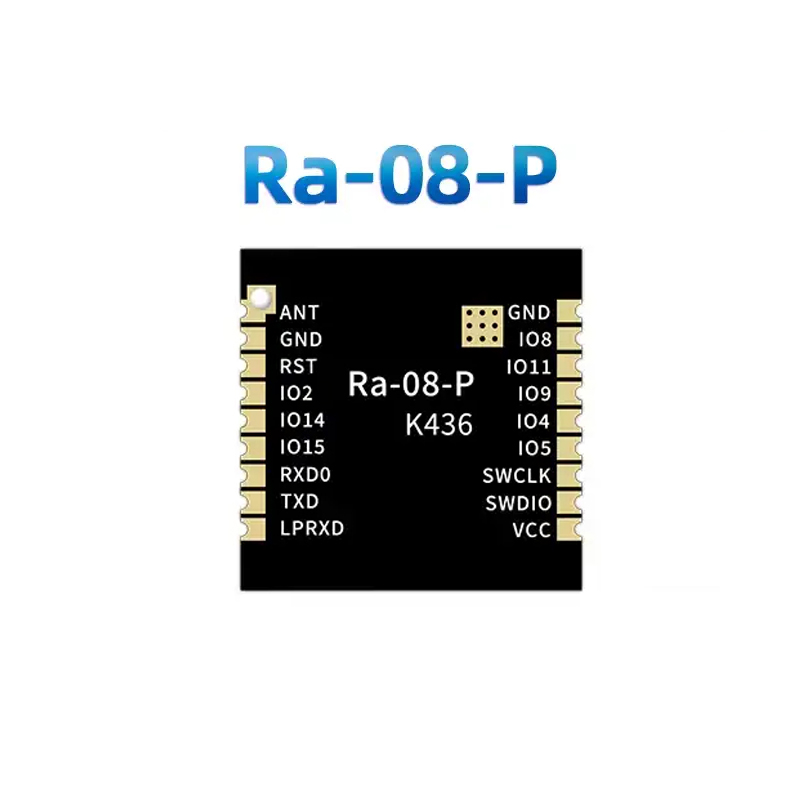

The Ra-08-P module has a total of 19 pins connected, as shown in the pin diagram. The pin function definition table is the interface definition:
| 腳序 Foot sequence | 名稱 Name | 功能說明 Function Description |
| 1,17 | GND | 接地 Grounding |
| 2 | IO8 | GPIO8/ADC_IN1 |
| 3 | IO11 | GPIO11/ADC_IN0 |
| 4 | IO9 | GPIO9/DAC_OUT |
| 5 | IO4 | GPIO4/SSP1_CLK |
| 6 | IO5 | GPIO5/SSP1_NSS |
| 7 | SWCLK | GPIO7/SWD_CLK |
| 8 | SEDIO | GPIO6/SWD_DATA |
| 9 | VCC | 3.3V 供電，推薦供電電流大于 500mA 3.3V power supply, recommended supply current greater than 500mA |
| 10 | LPRXD | GPIO60/LPUART-RX， Communication serial port |
| 11 | TXD | GPIO17/UART_TX |
| 12 | RXD0 | GPIO16/UART_RX，Burn serial port |
| 13 | IO15 | GPI015/I2C_SDA |
| 14 | IO14 | GPI014/I2C_SCL |
| 15 | IO2 | GPI02/BOOT |
| 16 | RST | RSTN_IN 外部復位，低電平有效 RSTN_IN external reset, low level effective |
| 18 | ANT | 天線接口 Antenna interface |
| EPAD | GND | 接地，需可靠接地，利于散熱 Grounding, reliable grounding is required to facilitate heat dissipation |
