Product Descriptions

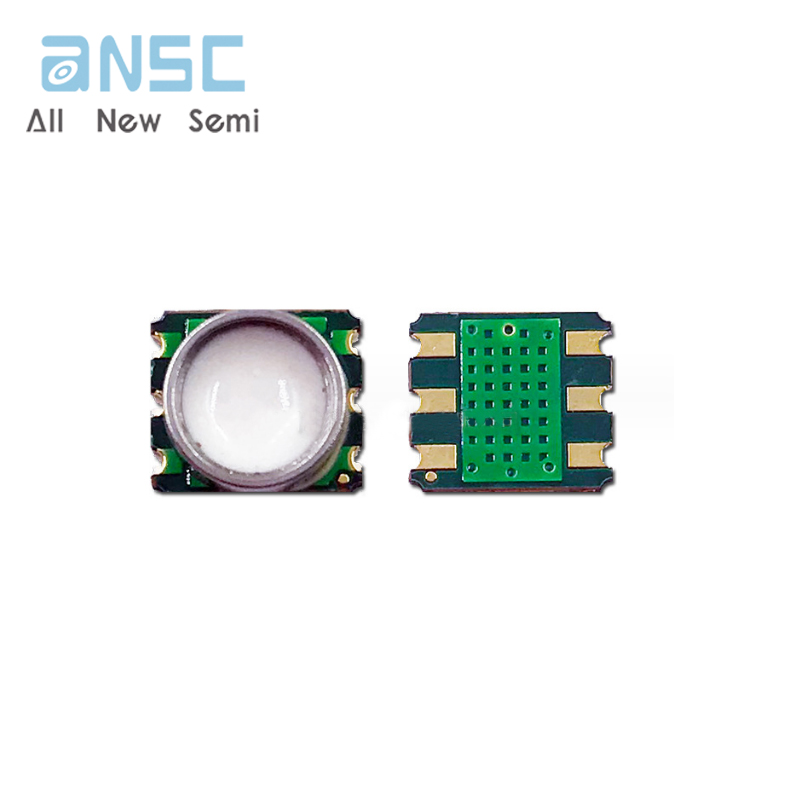

The HP206F employs a MEMS pressure sensor with an I2C interface to provide accurate temperature, pressure or altitude data. The sensor

pressure and temperature outputs are digitized by a high resolution 24-bit ADC. The altitude value is calculated by a specific patented

algorithm according to the pressure and temperature data. Data compensation is integrated internally to save the effort of the external host

MCU system. Easy command-based data acquisition interface and programmable interrupt control is available. Typical active supply current is

5.3μA per measurement-second while the ADC output is filtered and decimated by 256. Pressure output can be resolved with output in

fractions of a Pascal, and altitude can be resolved in 0.1 meter. Package is surface mount with a stainless steel cap and is RoHS compliant.

Product Features

? Supply voltage: 1.8V to 3.6V

? Pressure range: 300mbar~1200mbar ? Programmable events and interrupt controls

? Fully data compensated

? Direct Reading, compensated：

– Pressure: 20-bit measurement (Pascals)

– Altitude: 20-bit measurement (Meters)

– Temperature: 20-bit measurement (Degrees Celsius)

? Altitude Resolution down to 0.1 meter

? Standby current<0.1μA

? Operation temperature: -40 to +85℃

? High-speed I2C digital output interface

? Size: 6.8 x 6.2 x 3.0(+0.2) mm

Product Applications

? High Precision Mobile Altimeter / Barometer ? Industrial Pressure and Temperature Sensor System

? Automotive Systems

? Personal Electronics Altimetry

? Adventure and Sports watches

? Medical Gas Control System

? Weather Station Equipment ? Indoor Navigation and Map Assist ? Heating, Ventilation, Air Conditioning
