Product Descriptions

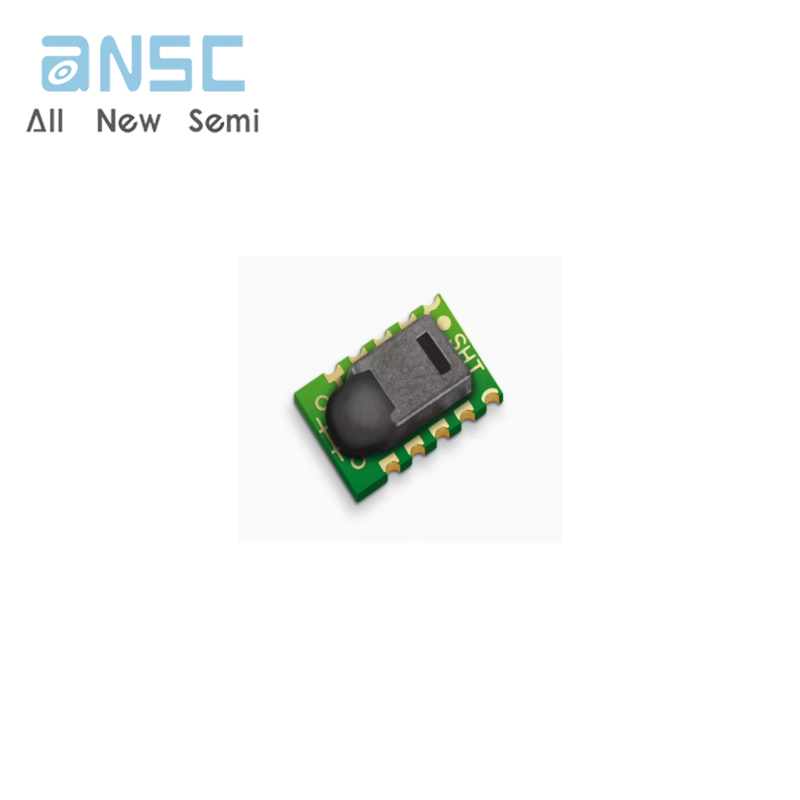

SHT1x (including SHT10, SHT11 and SHT15) is Sensirion’s family of surface mountable relative humidity and temperature sensors. The sensors

integrate sensor elements plus signal processing on a tiny foot print and provide a fully calibrated digital output. A unique capacitive sensor

element is used for measuring relative humidity while temperature is measured by a band-gap sensor. The applied CMOSens? technology

guarantees excellent reliability and long term stability. Both sensors are seamlessly coupled to a 14bit analog to digital converter and a serial

interface circuit. This results in superior signal quality, a fast response time and insensitivity to external disturbances (EMC).

Each SHT1x is individually calibrated in a precision humidity chamber. The calibration coefficients are programmed into an OTP memory on the

chip. These coefficients are used to internally calibrate the signals from the sensors. The 2-wire serial interface and internal voltage regulation

allows for easy and fast system integration. The tiny size and low power consumption makes SHT1x the ultimate choice for even the most

demanding applications.

SHT1x is supplied in a surface-mountable LCC (Leadless Chip Carrier) which is approved for standard reflow soldering processes. The same

sensor is also available with pins (SHT7x) or on flex print (SHTA1).

Humidity and Temperature Sensor IC

? Fully calibrated

? Digital output

? Low power consumption

? Excellent long term stability

? SMD type package – reflow solderable

SHT11
