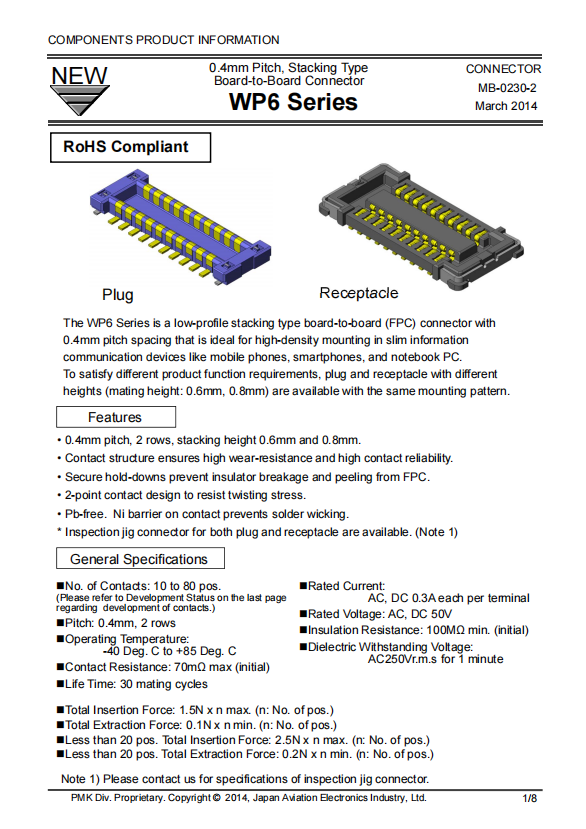

Product Descriptions

The WP6 Series is a low-profile stacking type board-to-board (FPC) connector with 0.4mm pitch spacing that is ideal for high-density mounting in slim information communication devices like mobile phones, smartphones, and notebook PC.

To satisfy different product function requirements, plug and receptacle with different heights (mating height: 0.6mm, 0.8mm) are available with the same mounting pattern.

Product Features

? 0.4mm pitch, 2 rows, stacking height 0.6mm and 0.8mm.

? Contact structure ensures high wear-resistance and high contact reliability.

? Secure hold-downs prevent insulator breakage and peeling from FPC.

? 2-point contact design to resist twisting stress.

? Pb-free. Ni barrier on contact prevents solder wicking.

* Inspection jig connector for both plug and receptacle are available. (Note 1)

Product General Specifications

? No. of Contacts: 10 to 80 pos.

(Please refer to Development Status on the last page

regarding development of contacts.)

? Pitch: 0.4mm, 2 rows

? Operating Temperature:

-40 Deg. C to +85 Deg. C

? Contact Resistance: 70m? max (initial)

? Life Time: 30 mating cycles

? 0.4mm pitch, 2 rows, stacking height 0.6mm and 0.8mm.

? Contact structure ensures high wear-resistance and high contact reliability.

? Secure hold-downs prevent insulator breakage and peeling from FPC.

? 2-point contact design to resist twisting stress.

? Pb-free. Ni barrier on contact prevents solder wicking.

* Inspection jig connector for both plug and receptacle are available. (Note 1)

? Total Insertion Force: 1.5N x n max. (n: No. of pos.)

? Total Extraction Force: 0.1N x n min. (n: No. of pos.)

? Less than 20 pos. Total Insertion Force: 2.5N x n max. (n: No. of pos.)

? Less than 20 pos. Total Extraction Force: 0.2N x n min. (n: No. of pos.)

? Rated Current:

AC, DC 0.3A each per terminal

? Rated Voltage: AC, DC 50V

? Insulation Resistance: 100M? min. (initial)

? Dielectric Withstanding Voltage:

AC250Vr.m.s for 1 minute

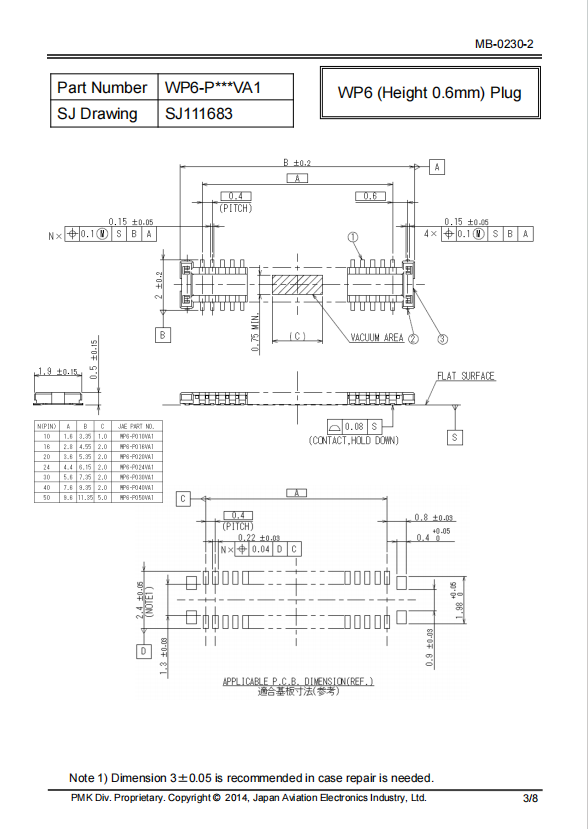

Specifications

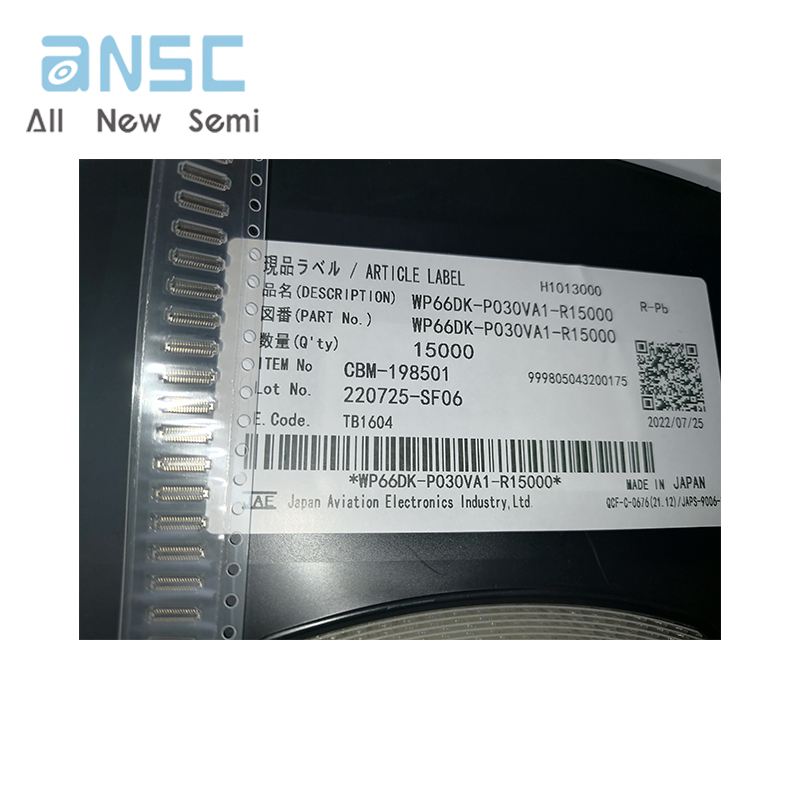

Actual product photos

Product Data Book：

For more product information, please download the PDF
